Product

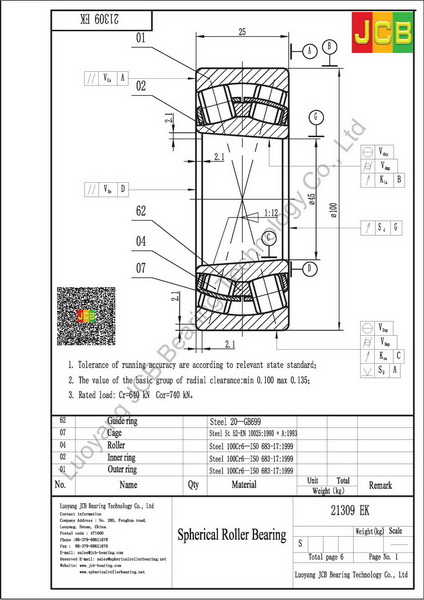

Drawing
21309 EK
Specifications
| Principal dimensions (d) | 45 |
| Principal dimensions (D) | 100 |
| Principal dimensions (B) | 25 |
| Basic load ratings dynamic (C) | 125 |
| Basic load ratings static (C0) | 127 |
| Fatigue load limit (Pu) | 13.7 |
| Speed ratings Lubrication grease | 4500 |
| Speed ratings Lubrication oil | 5600 |
| Mass | 0.99 |
| Dimensions (d) | 45 |
| Dimensions (d2) | 65.3 |
| Dimensions (D1) | 87.9 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.5 |
| Abutment and filet dimensions (da min) | 54 |
| Abutment and filet dimensions (Da max) | 91 |
| Abutment and filet dimensions (ra max) | 1.5 |
| Calculation factors (e) | 0.24 |
| Calculation factors (Y1) | 2.8 |
| Calculation factors (Y2) | 4.2 |
| Calculation factors (Y0) | 2.8 |
