Product

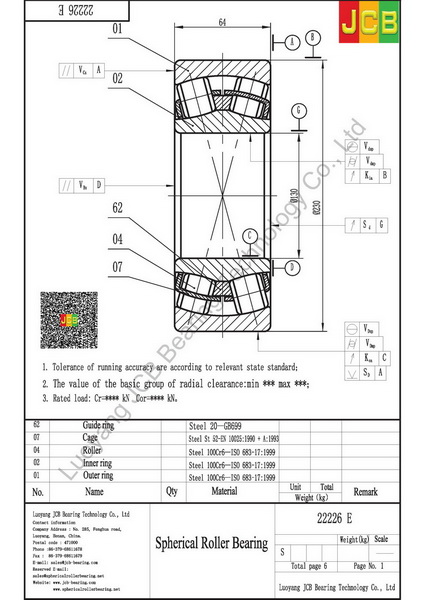

Drawing
22226 E
Specifications
| Principal dimensions (d) | 130 |
| Principal dimensions (D) | 230 |
| Principal dimensions (B) | 64 |
| Basic load ratings dynamic (C) | 735 |
| Basic load ratings static (C0) | 930 |
| Fatigue load limit (Pu) | 88 |
| Speed ratings Lubrication grease | 1800 |
| Speed ratings Lubrication oil | 2400 |
| Mass | 11 |
| Dimensions (d) | 130 |
| Dimensions (d2) | 152 |
| Dimensions (D1) | 201 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 144 |
| Abutment and filet dimensions (Da max) | 216 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.27 |
| Calculation factors (Y1) | 2.5 |
| Calculation factors (Y2) | 3.7 |
| Calculation factors (Y0) | 2.5 |
Description
点击这里添加您自己的文本
