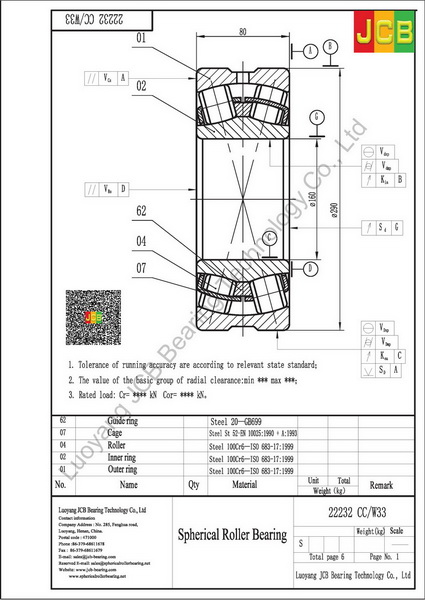

Drawing
22232 CC/W33
Specifications
| Principal dimensions (d) | 160 |
| Principal dimensions (D) | 290 |
| Principal dimensions (B) | 80 |
| Basic load ratings dynamic (C) | 1000 |
| Basic load ratings static (C0) | 1290 |
| Fatigue load limit (Pu) | 118 |
| Speed ratings Lubrication grease | 1500 |
| Speed ratings Lubrication oil | 1900 |
| Mass | 22.5 |
| Dimensions (d) | 160 |
| Dimensions (d2) | 191 |
| Dimensions (D1) | 250 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 174 |
| Abutment and filet dimensions (Da max) | 276 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.26 |
| Calculation factors (Y1) | 2.6 |
| Calculation factors (Y2) | 3.9 |
| Calculation factors (Y0) | 2.5 |
