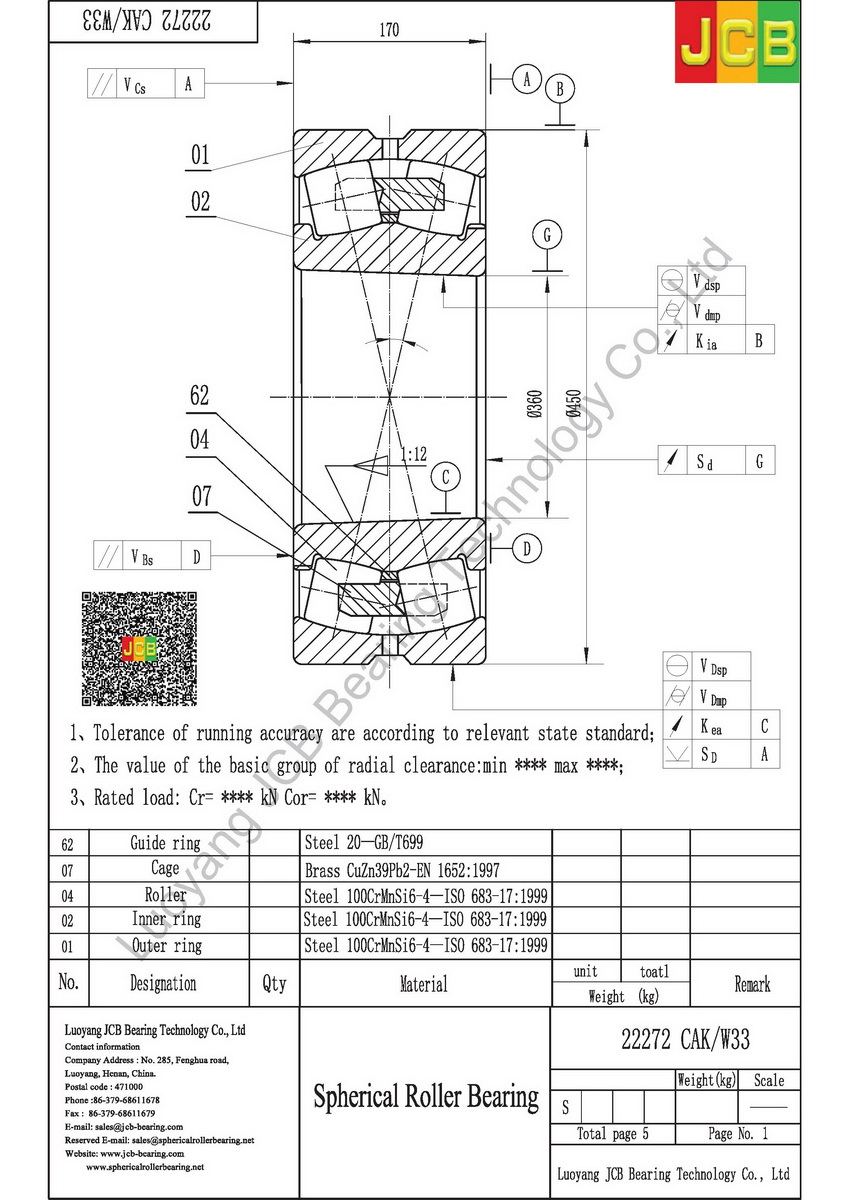

Drawing
22272 CAK/W33
Specifications
| Principal dimensions (d) | 360 |
| Principal dimensions (D) | 650 |
| Principal dimensions (B) | 170 |
| Basic load ratings dynamic (C) | 3740 |
| Basic load ratings static (C0) | 6200 |
| Fatigue load limit (Pu) | 440 |
| Speed ratings Lubrication grease | 480 |
| Speed ratings Lubrication oil | 600 |
| Mass | 255 |
| Dimensions (d) | 360 |
| Dimensions (d2) | 453 |
| Dimensions (D1) | 566 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 386 |
| Abutment and filet dimensions (Da max) | 624 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.26 |
| Calculation factors (Y1) | 2.6 |
| Calculation factors (Y2) | 3.9 |
| Calculation factors (Y0) | 2.5 |
