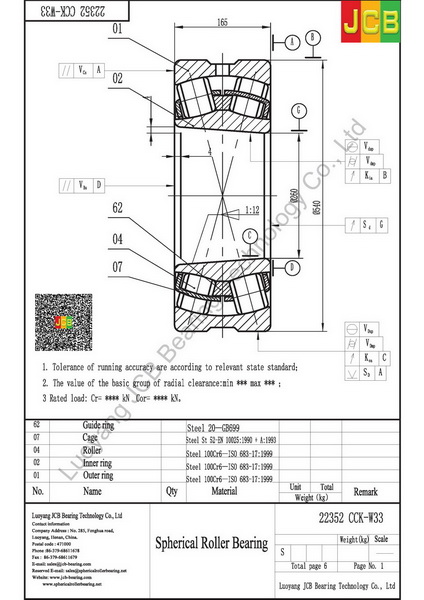

Drawing
22352 CCK/W33
Specifications
| Principal dimensions (d) | 260 |
| Principal dimensions (D) | 540 |
| Principal dimensions (B) | 165 |
| Basic load ratings dynamic (C) | 3050 |
| Basic load ratings static (C0) | 4550 |
| Fatigue load limit (Pu) | 325 |
| Speed ratings Lubrication grease | 630 |
| Speed ratings Lubrication oil | 800 |
| Mass | 190 |
| Dimensions (d) | 260 |
| Dimensions (d2) | 329 |
| Dimensions (D1) | 457 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 286 |
| Abutment and filet dimensions (Da max) | 514 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.31 |
| Calculation factors (Y1) | 2.2 |
| Calculation factors (Y2) | 3.3 |
| Calculation factors (Y0) | 2.2 |
