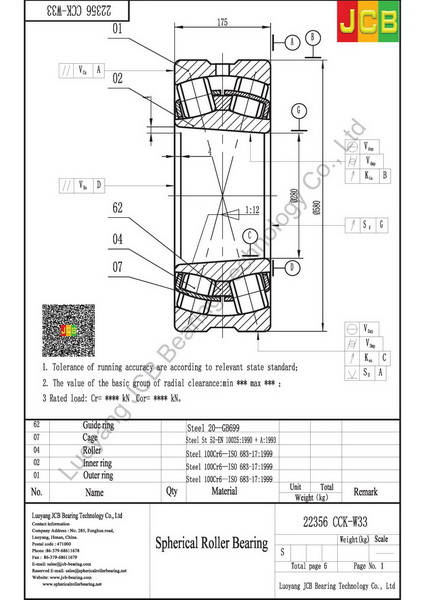

Drawing
22356 CCK/W33
Specifications
| Principal dimensions (d) | 280 |
| Principal dimensions (D) | 580 |
| Principal dimensions (B) | 175 |
| Basic load ratings dynamic (C) | 3450 |
| Basic load ratings static (C0) | 5200 |
| Fatigue load limit (Pu) | 365 |
| Speed ratings Lubrication grease | 600 |
| Speed ratings Lubrication oil | 750 |
| Mass | 235 |
| Dimensions (d) | 280 |
| Dimensions (d2) | 354 |
| Dimensions (D1) | 492 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 306 |
| Abutment and filet dimensions (Da max) | 554 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
