Product

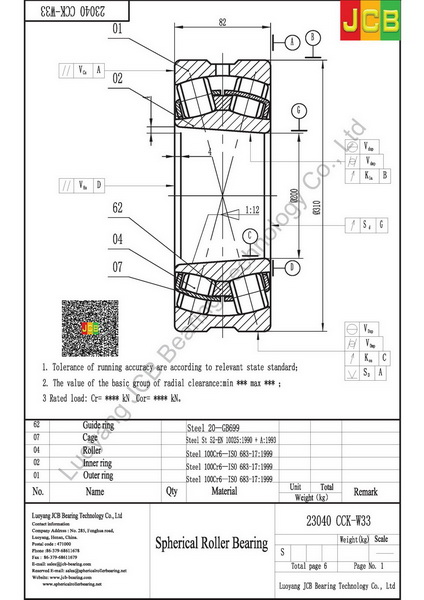

Drawing
23040 CCK/W33
Specifications
| Principal dimensions (d) | 100 |
| Principal dimensions (D) | 310 |
| Principal dimensions (B) | 82 |
| Basic load ratings dynamic (C) | 1000 |
| Basic load ratings static (C0) | 1530 |
| Fatigue load limit (Pu) | 137 |
| Speed ratings Lubrication grease | 1200 |
| Speed ratings Lubrication oil | 1600 |
| Mass | 23.3 |
| Dimensions (d) | 200 |
| Dimensions (d2) | 228 |
| Dimensions (D1) | 278 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 211 |
| Abutment and filet dimensions (Da max) | 299 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.24 |
| Calculation factors (Y1) | 2.8 |
| Calculation factors (Y2) | 4.2 |
| Calculation factors (Y0) | 2.8 |
