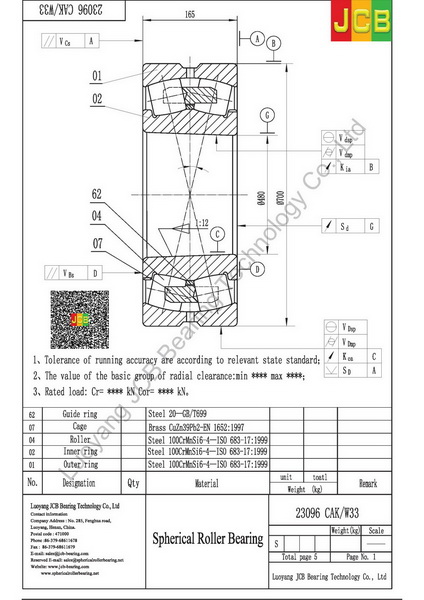

Drawing
23096 CAK/W33
Specifications
| Principal dimensions (d) | 480 |
| Principal dimensions (D) | 700 |
| Principal dimensions (B) | 165 |
| Basic load ratings dynamic (C) | 3340 |
| Basic load ratings static (C0) | 6800 |
| Fatigue load limit (Pu) | 450 |
| Speed ratings Lubrication grease | 380 |
| Speed ratings Lubrication oil | 480 |
| Mass | 215 |
| Dimensions (d) | 480 |
| Dimensions (d2) | 547 |
| Dimensions (D1) | 632 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 503 |
| Abutment and filet dimensions (Da max) | 677 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.21 |
| Calculation factors (Y1) | 3.2 |
| Calculation factors (Y2) | 4.8 |
| Calculation factors (Y0) | 3.2 |
