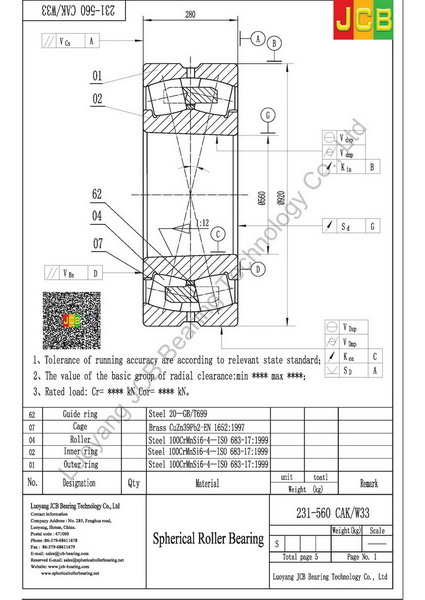

Drawing
231/560 CAK/W33
Specifications
| Principal dimensions (d) | 560 |
| Principal dimensions (D) | 920 |
| Principal dimensions (B) | 280 |
| Basic load ratings dynamic (C) | 7990 |
| Basic load ratings static (C0) | 16000 |
| Fatigue load limit (Pu) | 980 |
| Speed ratings Lubrication grease | 240 |
| Speed ratings Lubrication oil | 320 |
| Mass | 740 |
| Dimensions (d) | 560 |
| Dimensions (d2) | 673 |
| Dimensions (D1) | 808 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 592 |
| Abutment and filet dimensions (Da max) | 888 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
