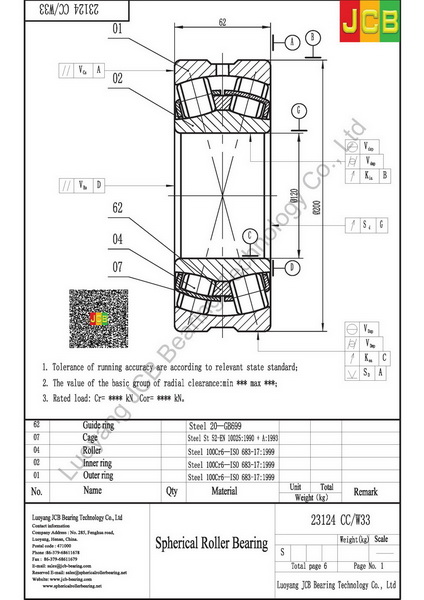

Drawing
23124 CC/W33
Specifications
| Principal dimensions (d) | 120 |
| Principal dimensions (D) | 200 |
| Principal dimensions (B) | 62 |
| Basic load ratings dynamic (C) | 510 |
| Basic load ratings static (C0) | 695 |
| Fatigue load limit (Pu) | 71 |
| Speed ratings Lubrication grease | 1800 |
| Speed ratings Lubrication oil | 2400 |
| Mass | 8 |
| Dimensions (d) | 120 |
| Dimensions (d2) | 139 |
| Dimensions (D1) | 174 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 131 |
| Abutment and filet dimensions (Da max) | 189 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.28 |
| Calculation factors (Y1) | 2.4 |
| Calculation factors (Y2) | 3.6 |
| Calculation factors (Y0) | 2.5 |
