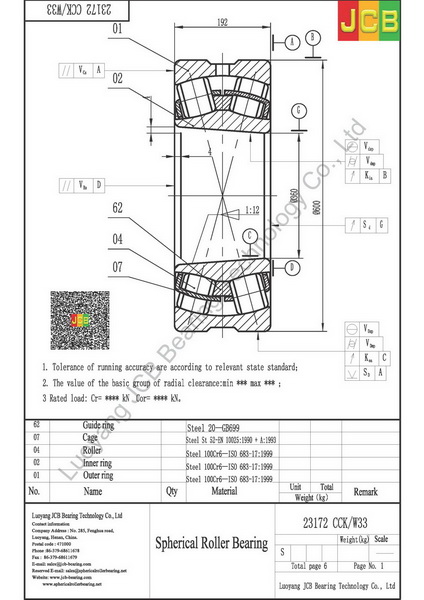

Drawing
23172 CCK/W33
Specifications
| Principal dimensions (d) | 360 |
| Principal dimensions (D) | 600 |
| Principal dimensions (B) | 192 |
| Basic load ratings dynamic (C) | 4300 |
| Basic load ratings static (C0) | 6950 |
| Fatigue load limit (Pu) | 490 |
| Speed ratings Lubrication grease | 560 |
| Speed ratings Lubrication oil | 700 |
| Mass | 220 |
| Dimensions (d) | 360 |
| Dimensions (d2) | 418 |
| Dimensions (D1) | 524 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 380 |
| Abutment and filet dimensions (Da max) | 580 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
