Product

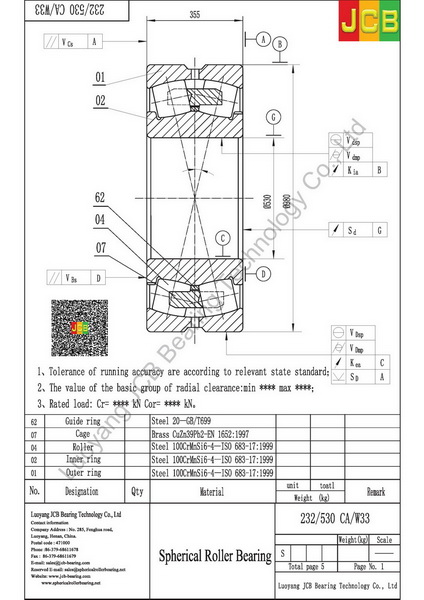

Drawing
232/530 CA/W33
Specifications
| Principal dimensions (d) | 530 |
| Principal dimensions (D) | 980 |
| Principal dimensions (B) | 355 |
| Basic load ratings dynamic (C) | 11100 |
| Basic load ratings static (C0) | 20400 |
| Fatigue load limit (Pu) | 1220 |
| Speed ratings Lubrication grease | 220 |
| Speed ratings Lubrication oil | 300 |
| Mass | 1200 |
| Dimensions (d) | 530 |
| Dimensions (d2) | 668 |
| Dimensions (D1) | 836 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 9.5 |
| Abutment and filet dimensions (da min) | 570 |
| Abutment and filet dimensions (Da max) | 940 |
| Abutment and filet dimensions (ra max) | 8 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
