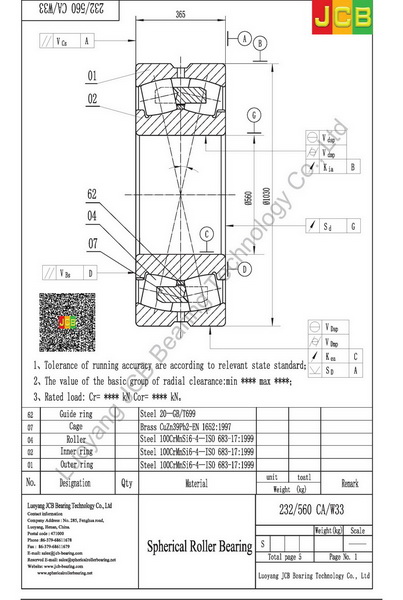

Drawing
232/560 CA/W33
Specifications
| Principal dimensions (d) | 560 |
| Principal dimensions (D) | 1030 |
| Principal dimensions (B) | 365 |
| Basic load ratings dynamic (C) | 11500 |
| Basic load ratings static (C0) | 22000 |
| Fatigue load limit (Pu) | 1400 |
| Speed ratings Lubrication grease | 200 |
| Speed ratings Lubrication oil | 280 |
| Mass | 1350 |
| Dimensions (d) | 550 |
| Dimensions (d2) | 704 |
| Dimensions (D1) | 877 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 9.5 |
| Abutment and filet dimensions (da min) | 600 |
| Abutment and filet dimensions (Da max) | 990 |
| Abutment and filet dimensions (ra max) | 8 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
