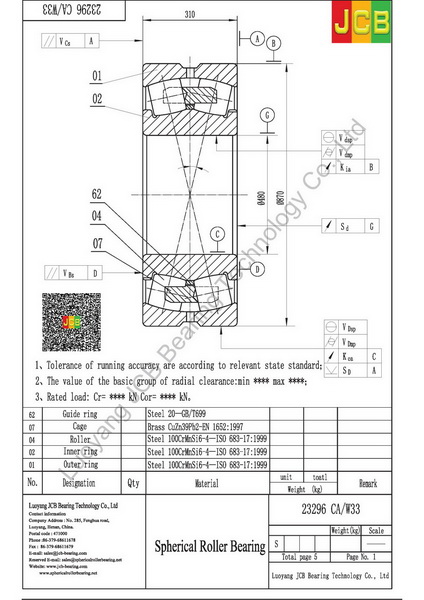

Drawing
23296 CA/W33
Specifications
| Principal dimensions (d) | 480 |
| Principal dimensions (D) | 870 |
| Principal dimensions (B) | 310 |
| Basic load ratings dynamic (C) | 8170 |
| Basic load ratings static (C0) | 15000 |
| Fatigue load limit (Pu) | 950 |
| Speed ratings Lubrication grease | 260 |
| Speed ratings Lubrication oil | 340 |
| Mass | 800 |
| Dimensions (d) | 480 |
| Dimensions (d2) | 600 |
| Dimensions (D1) | 741 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 512 |
| Abutment and filet dimensions (Da max) | 838 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
