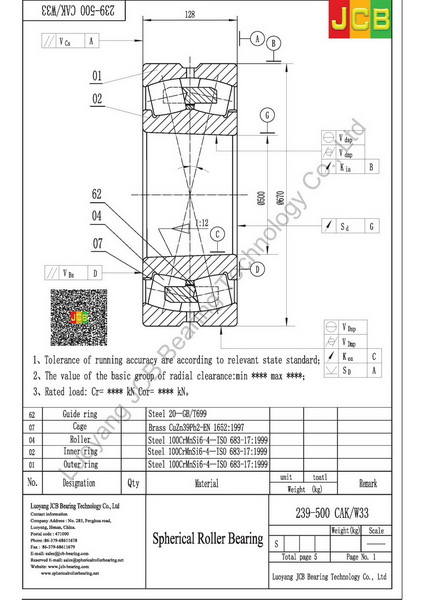

Drawing
239/500 CAK/W33
Specifications
| Principal dimensions (d) | 500 |
| Principal dimensions (D) | 670 |
| Principal dimensions (B) | 128 |
| Basic load ratings dynamic (C) | 2530 |
| Basic load ratings static (C0) | 6000 |
| Fatigue load limit (Pu) | 415 |
| Speed ratings Lubrication grease | 400 |
| Speed ratings Lubrication oil | 500 |
| Mass | 130 |
| Dimensions (d) | 500 |
| Dimensions (d2) | 557 |
| Dimensions (D1) | 621 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 518 |
| Abutment and filet dimensions (Da max) | 652 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.17 |
| Calculation factors (Y1) | 4 |
| Calculation factors (Y2) | 5.9 |
| Calculation factors (Y0) | 4 |
