Product

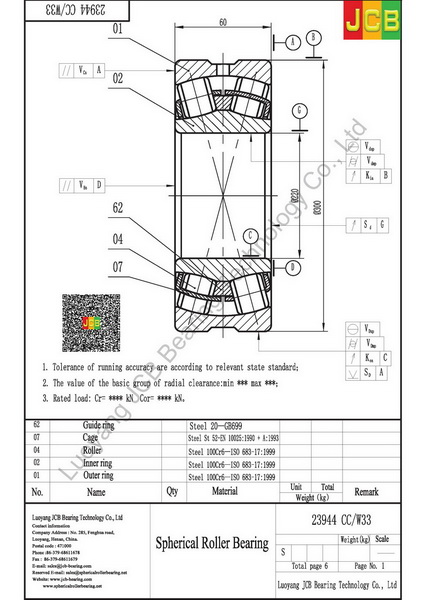

Drawing
23944 CC/W33
Specifications
| Principal dimensions (d) | 220 |
| Principal dimensions (D) | 300 |
| Principal dimensions (B) | 60 |
| Basic load ratings dynamic (C) | 630 |
| Basic load ratings static (C0) | 1080 |
| Fatigue load limit (Pu) | 93 |
| Speed ratings Lubrication grease | 1500 |
| Speed ratings Lubrication oil | 1900 |
| Mass | 12.5 |
| Dimensions (d) | 220 |
| Dimensions (d2) | 241 |
| Dimensions (D1) | 278 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 231 |
| Abutment and filet dimensions (Da max) | 289 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.16 |
| Calculation factors (Y1) | 4.2 |
| Calculation factors (Y2) | 6.3 |
| Calculation factors (Y0) | 4 |
