Product

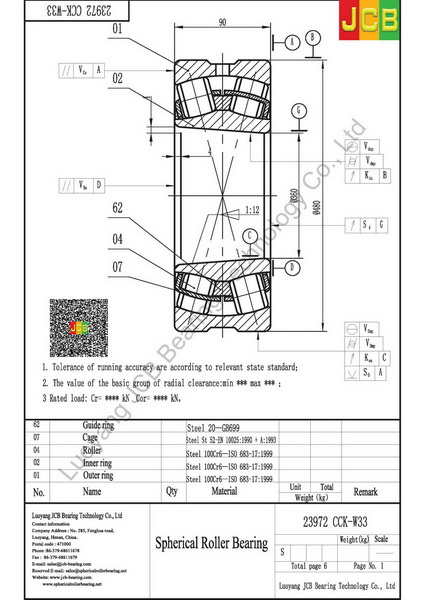

Drawing
23972 CCK/W33
Specifications
| Principal dimensions (d) | 360 |
| Principal dimensions (D) | 480 |
| Principal dimensions (B) | 90 |
| Basic load ratings dynamic (C) | 1400 |
| Basic load ratings static (C0) | 2750 |
| Fatigue load limit (Pu) | 220 |
| Speed ratings Lubrication grease | 850 |
| Speed ratings Lubrication oil | 1100 |
| Mass | 43 |
| Dimensions (d) | 360 |
| Dimensions (d2) | 394 |
| Dimensions (D1) | 447 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 373 |
| Abutment and filet dimensions (Da max) | 467 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.15 |
| Calculation factors (Y1) | 4.5 |
| Calculation factors (Y2) | 6.7 |
| Calculation factors (Y0) | 4.5 |
