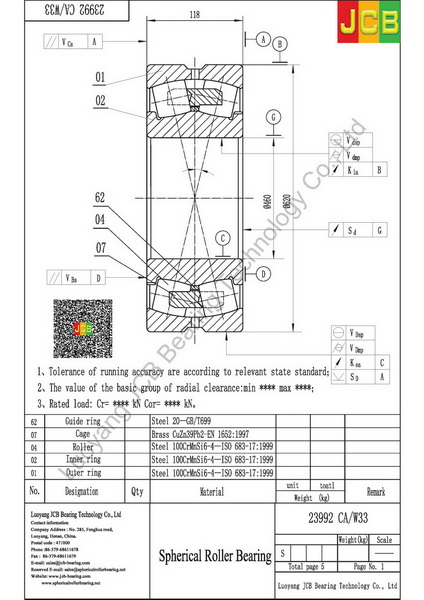

Drawing
23992 CA/W33
Specifications
| Principal dimensions (d) | 460 |
| Principal dimensions (D) | 620 |
| Principal dimensions (B) | 118 |
| Basic load ratings dynamic (C) | 2190 |
| Basic load ratings static (C0) | 5000 |
| Fatigue load limit (Pu) | 355 |
| Speed ratings Lubrication grease | 430 |
| Speed ratings Lubrication oil | 530 |
| Mass | 105 |
| Dimensions (d) | 460 |
| Dimensions (d2) | 512 |
| Dimensions (D1) | 573 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 4 |
| Abutment and filet dimensions (da min) | 475 |
| Abutment and filet dimensions (Da max) | 605 |
| Abutment and filet dimensions (ra max) | 3 |
| Calculation factors (e) | 0.16 |
| Calculation factors (Y1) | 4.2 |
| Calculation factors (Y2) | 6.3 |
| Calculation factors (Y0) | 4 |
