Product

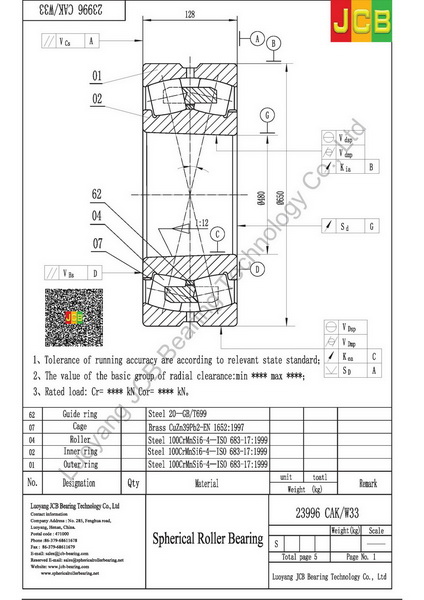

Drawing
23996 CAK/W33
Specifications
| Principal dimensions (d) | 480 |
| Principal dimensions (D) | 650 |
| Principal dimensions (B) | 128 |
| Basic load ratings dynamic (C) | 2530 |
| Basic load ratings static (C0) | 5700 |
| Fatigue load limit (Pu) | 405 |
| Speed ratings Lubrication grease | 400 |
| Speed ratings Lubrication oil | 500 |
| Mass | 125 |
| Dimensions (d) | 480 |
| Dimensions (d2) | 532 |
| Dimensions (D1) | 601 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 498 |
| Abutment and filet dimensions (Da max) | 632 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.18 |
| Calculation factors (Y1) | 3.8 |
| Calculation factors (Y2) | 5.6 |
| Calculation factors (Y0) | 3.6 |
Description
