Product

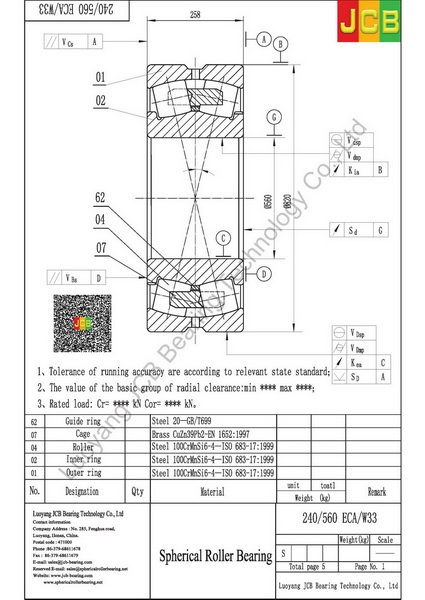

Drawing
240/560 ECA/W33
Specifications
| Principal dimensions (d) | 560 |
| Principal dimensions (D) | 820 |
| Principal dimensions (B) | 258 |
| Basic load ratings dynamic (C) | 6330 |
| Basic load ratings static (C0) | 14600 |
| Fatigue load limit (Pu) | 960 |
| Speed ratings Lubrication grease | 260 |
| Speed ratings Lubrication oil | 340 |
| Mass | 465 |
| Dimensions (d) | 560 |
| Dimensions (d2) | 635 |
| Dimensions (D1) | 728 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 583 |
| Abutment and filet dimensions (Da max) | 797 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.28 |
| Calculation factors (Y1) | 2.4 |
| Calculation factors (Y2) | 3.6 |
| Calculation factors (Y0) | 2.5 |
Description
