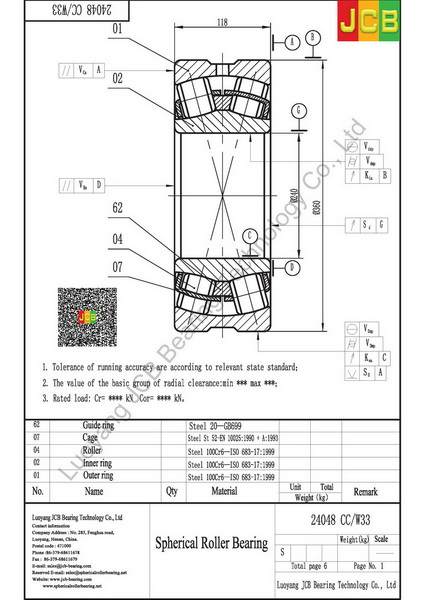

Drawing
24048 CC/W33
Specifications
| Principal dimensions (d) | 240 |
| Principal dimensions (D) | 360 |
| Principal dimensions (B) | 118 |
| Basic load ratings dynamic (C) | 1380 |
| Basic load ratings static (C0) | 2700 |
| Fatigue load limit (Pu) | 228 |
| Speed ratings Lubrication grease | 800 |
| Speed ratings Lubrication oil | 1000 |
| Mass | 43 |
| Dimensions (d) | 240 |
| Dimensions (d2) | 265 |
| Dimensions (D1) | 316 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 253 |
| Abutment and filet dimensions (Da max) | 347 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
