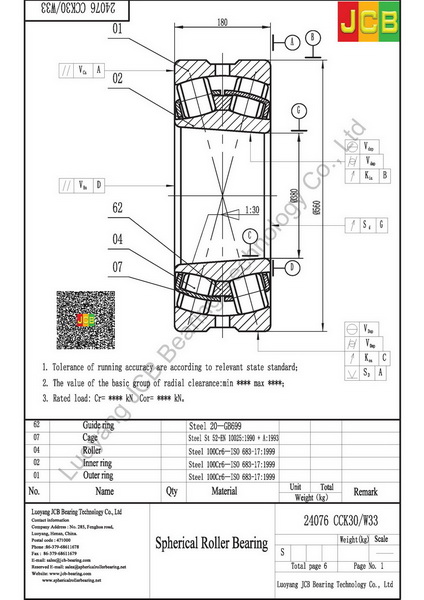

Drawing
24076 CCK30/W33
Specifications
| Principal dimensions (d) | 380 |
| Principal dimensions (D) | 560 |
| Principal dimensions (B) | 180 |
| Basic load ratings dynamic (C) | 3600 |
| Basic load ratings static (C0) | 6800 |
| Fatigue load limit (Pu) | 480 |
| Speed ratings Lubrication grease | 480 |
| Speed ratings Lubrication oil | 600 |
| Mass | 150 |
| Dimensions (d) | 380 |
| Dimensions (d2) | 420 |
| Dimensions (D1) | 496 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 398 |
| Abutment and filet dimensions (Da max) | 542 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
