Product

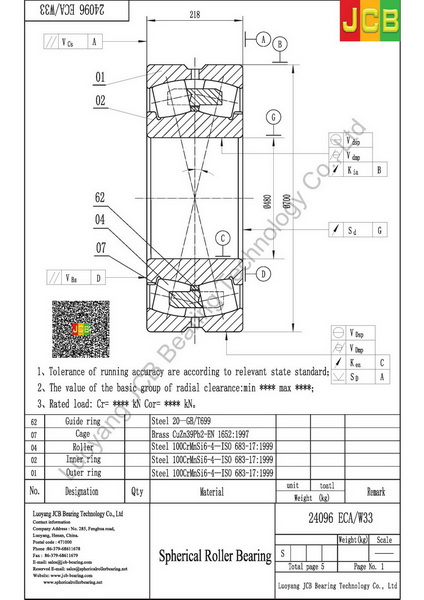

Drawing
24096 ECA/W33
Specifications
| Principal dimensions (d) | 480 |
| Principal dimensions (D) | 700 |
| Principal dimensions (B) | 218 |
| Basic load ratings dynamic (C) | 4600 |
| Basic load ratings static (C0) | 10400 |
| Fatigue load limit (Pu) | 695 |
| Speed ratings Lubrication grease | 340 |
| Speed ratings Lubrication oil | 430 |
| Mass | 285 |
| Dimensions (d) | 480 |
| Dimensions (d2) | 541 |
| Dimensions (D1) | 619 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 6 |
| Abutment and filet dimensions (da min) | 503 |
| Abutment and filet dimensions (Da max) | 677 |
| Abutment and filet dimensions (ra max) | 5 |
| Calculation factors (e) | 0.28 |
| Calculation factors (Y1) | 2.4 |
| Calculation factors (Y2) | 3.6 |
| Calculation factors (Y0) | 2.5 |
