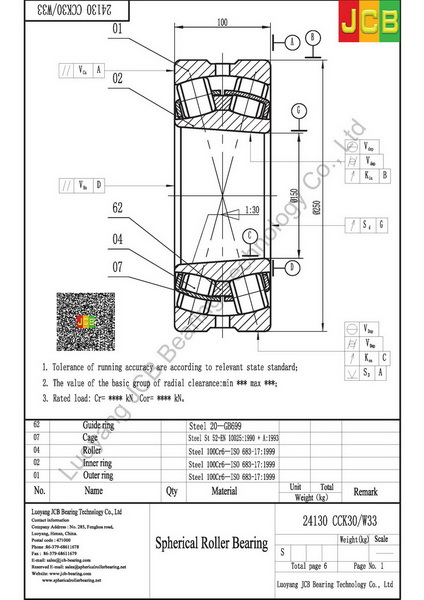

Drawing
24130 CCK30/W33
Specifications
| Principal dimensions (d) | 24130 |
| Principal dimensions (D) | 250 |
| Principal dimensions (B) | 100 |
| Basic load ratings dynamic (C) | 1020 |
| Basic load ratings static (C0) | 1530 |
| Fatigue load limit (Pu) | 146 |
| Speed ratings Lubrication grease | 1000 |
| Speed ratings Lubrication oil | 1400 |
| Mass | 20 |
| Dimensions (d) | 150 |
| Dimensions (d2) | 169 |
| Dimensions (D1) | 211 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 162 |
| Abutment and filet dimensions (Da max) | 238 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
