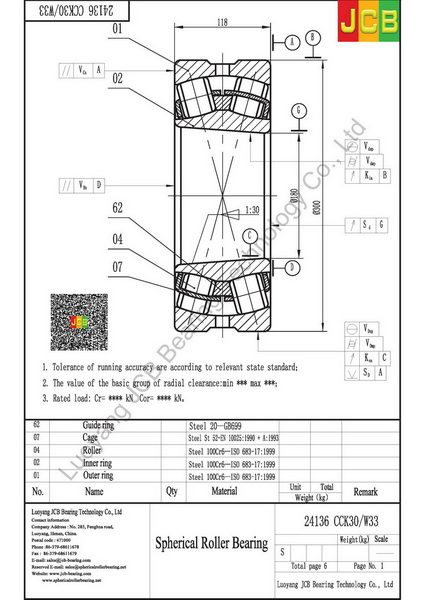

Drawing
24136 CCK30/W33
Specifications
| Principal dimensions (d) | 180 |
| Principal dimensions (D) | 300 |
| Principal dimensions (B) | 118 |
| Basic load ratings dynamic (C) | 1400 |
| Basic load ratings static (C0) | 2160 |
| Fatigue load limit (Pu) | 196 |
| Speed ratings Lubrication grease | 900 |
| Speed ratings Lubrication oil | 1200 |
| Mass | 34.5 |
| Dimensions (d) | 180 |
| Dimensions (d2) | 203 |
| Dimensions (D1) | 253 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 194 |
| Abutment and filet dimensions (Da max) | 286 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
