Product

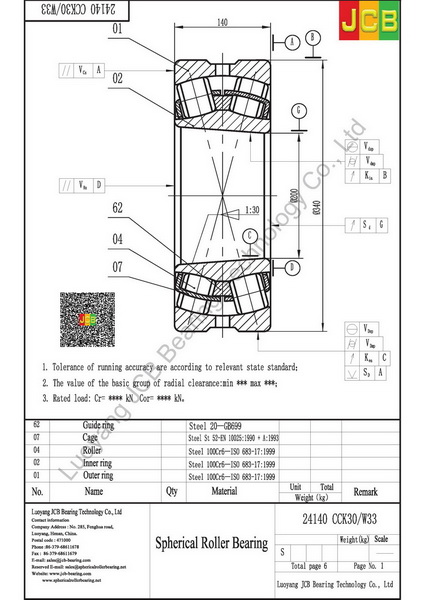

Drawing
24140 CCK30/W33
Specifications
| Principal dimensions (d) | 200 |
| Principal dimensions (D) | 340 |
| Principal dimensions (B) | 140 |
| Basic load ratings dynamic (C) | 1800 |
| Basic load ratings static (C0) | 2800 |
| Fatigue load limit (Pu) | 232 |
| Speed ratings Lubrication grease | 800 |
| Speed ratings Lubrication oil | 1000 |
| Mass | 53.5 |
| Dimensions (d) | 200 |
| Dimensions (d2) | 226 |
| Dimensions (D1) | 284 |
| Dimensions (b) | 11.1 |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 214 |
| Abutment and filet dimensions (Da max) | 326 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.4 |
| Calculation factors (Y1) | 1.7 |
| Calculation factors (Y2) | 2.5 |
| Calculation factors (Y0) | 1.6 |
