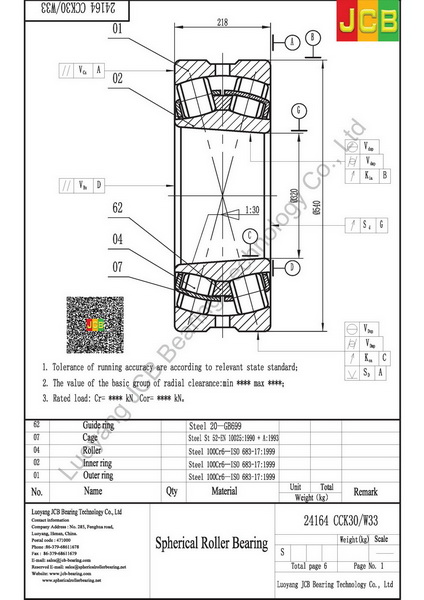

Drawing
24164 CCK30/W33
Specifications
| Principal dimensions (d) | 320 |
| Principal dimensions (D) | 540 |
| Principal dimensions (B) | 218 |
| Basic load ratings dynamic (C) | 3740 |
| Basic load ratings static (C0) | 7100 |
| Fatigue load limit (Pu) | 510 |
| Speed ratings Lubrication grease | 480 |
| Speed ratings Lubrication oil | 600 |
| Mass | 210 |
| Dimensions (d) | 320 |
| Dimensions (d2) | 364 |
| Dimensions (D1) | 455 |
| Dimensions (b) | 16.7 |
| Dimensions (k) | 9 |
| Dimensions (r mim) | 5 |
| Abutment and filet dimensions (da min) | 340 |
| Abutment and filet dimensions (Da max) | 520 |
| Abutment and filet dimensions (ra max) | 4 |
| Calculation factors (e) | 0.4 |
| Calculation factors (Y1) | 1.7 |
| Calculation factors (Y2) | 2.5 |
| Calculation factors (Y0) | 1.6 |
