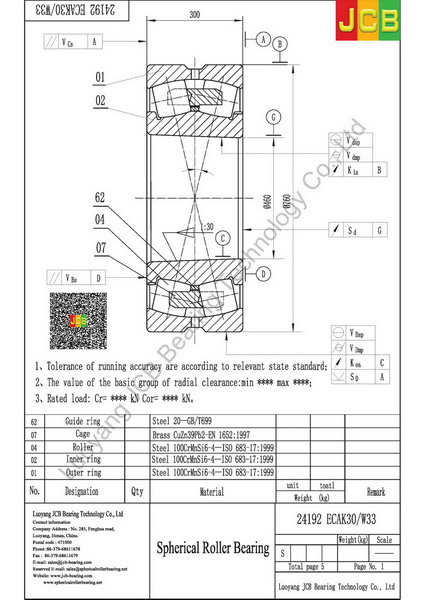

Drawing
24192 ECAK30/W33
Specifications
| Principal dimensions (d) | 460 |
| Principal dimensions (D) | 760 |
| Principal dimensions (B) | 300 |
| Basic load ratings dynamic (C) | 7250 |
| Basic load ratings static (C0) | 14600 |
| Fatigue load limit (Pu) | 1000 |
| Speed ratings Lubrication grease | 260 |
| Speed ratings Lubrication oil | 340 |
| Mass | 560 |
| Dimensions (d) | 460 |
| Dimensions (d2) | 544 |
| Dimensions (D1) | 649 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 492 |
| Abutment and filet dimensions (Da max) | 728 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.37 |
| Calculation factors (Y1) | 1.8 |
| Calculation factors (Y2) | 2.7 |
| Calculation factors (Y0) | 1.8 |
