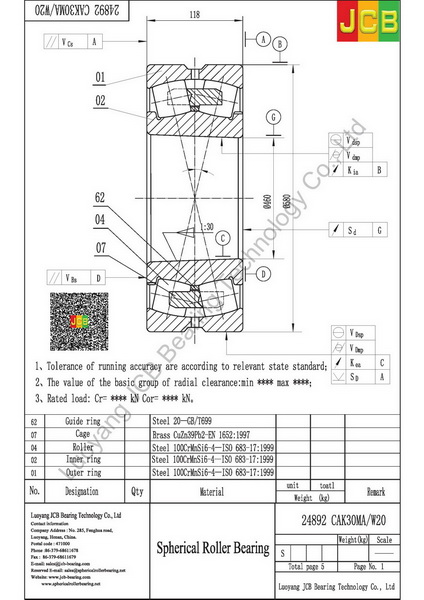

Drawing
24892 CAK30MA/W20
Specifications
| Principal dimensions (d) | 460 |
| Principal dimensions (D) | 580 |
| Principal dimensions (B) | 118 |
| Basic load ratings dynamic (C) | 1790 |
| Basic load ratings static (C0) | 4900 |
| Fatigue load limit (Pu) | 345 |
| Speed ratings Lubrication grease | 450 |
| Speed ratings Lubrication oil | 560 |
| Mass | 75.5 |
| Dimensions (d) | 460 |
| Dimensions (d2) | 505 |
| Dimensions (D1) | 541 |
| Dimensions (b) | – |
| Dimensions (k) | 6 |
| Dimensions (r mim) | 3 |
| Abutment and filet dimensions (da min) | 473 |
| Abutment and filet dimensions (Da max) | 567 |
| Abutment and filet dimensions (ra max) | 2.5 |
| Calculation factors (e) | 0.17 |
| Calculation factors (Y1) | 4 |
| Calculation factors (Y2) | 5.9 |
| Calculation factors (Y0) | 3.7 |
