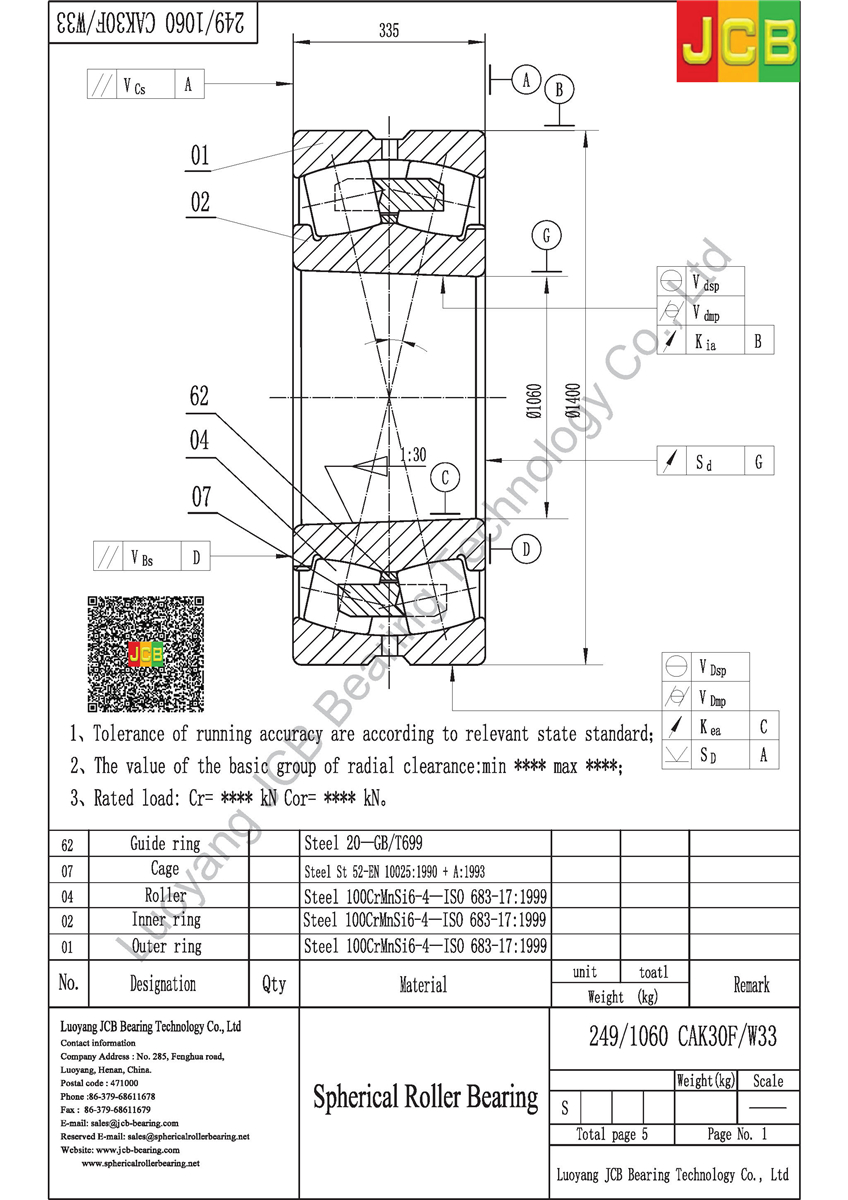

Drawing
249/1060 CAK30F/W33
Specifications
| Principal dimensions (d) | 1060 |
| Principal dimensions (D) | 1400 |
| Principal dimensions (B) | 335 |
| Basic load ratings dynamic (C) | 11500 |
| Basic load ratings static (C0) | 32500 |
| Fatigue load limit (Pu) | 1860 |
| Speed ratings Lubrication grease | 120 |
| Speed ratings Lubrication oil | 160 |
| Mass | 1400 |
| Dimensions (d) | 1060 |
| Dimensions (d2) | 1165 |
| Dimensions (D1) | 1282 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 1088 |
| Abutment and filet dimensions (Da max) | 1392 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.21 |
| Calculation factors (Y1) | 3.2 |
| Calculation factors (Y2) | 4.8 |
| Calculation factors (Y0) | 3.2 |
