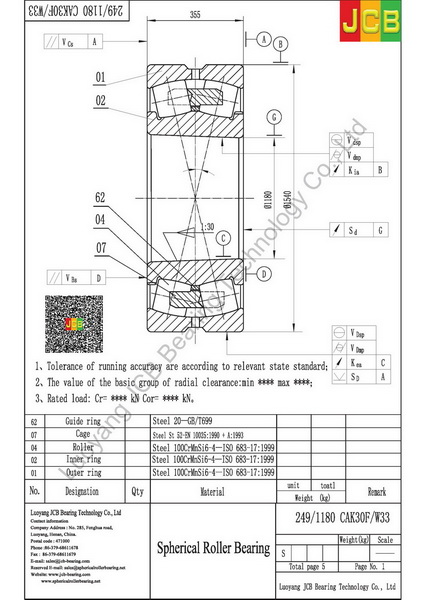

Drawing
249/1180 CAK30F/W33
Specifications
| Principal dimensions (d) | 1180 |
| Principal dimensions (D) | 1540 |
| Principal dimensions (B) | 355 |
| Basic load ratings dynamic (C) | 13600 |
| Basic load ratings static (C0) | 40500 |
| Fatigue load limit (Pu) | 2160 |
| Speed ratings Lubrication grease | 95 |
| Speed ratings Lubrication oil | 130 |
| Mass | 1800 |
| Dimensions (d) | 1180 |
| Dimensions (d2) | 1293 |
| Dimensions (D1) | 1417 |
| Dimensions (b) | 22.3 |
| Dimensions (k) | 12 |
| Dimensions (r mim) | 7.5 |
| Abutment and filet dimensions (da min) | 1208 |
| Abutment and filet dimensions (Da max) | 1512 |
| Abutment and filet dimensions (ra max) | 6 |
| Calculation factors (e) | 0.2 |
| Calculation factors (Y1) | 3.4 |
| Calculation factors (Y2) | 5 |
| Calculation factors (Y0) | 3.2 |
