Product

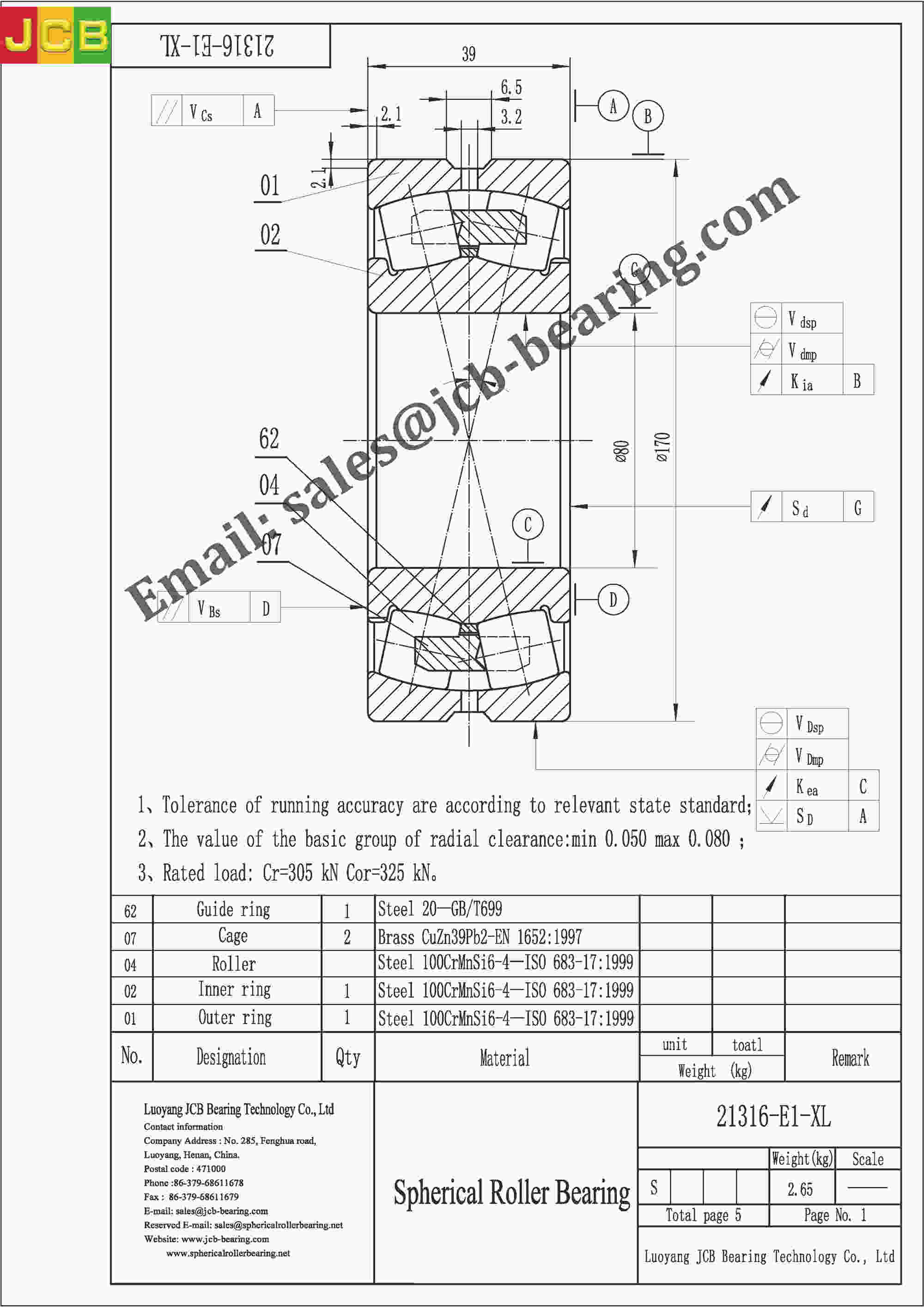

Drawing
21316-E1-XL
Specifications
| Principal dimensions (d) | 80 mm |
| Principal dimensions (D) | 170 mm |
| Principal dimensions (B) | 39 mm |
| Basic load ratings dynamic (Cr) | request by email |
| Basic load ratings static (Cor) | request by email |
| Fatigue load limit (Pu) | 38500 N |
| Speed ratings Lubrication grease | request by email |
| Speed ratings Lubrication oil | request by email |
| Mass | 2.65 kg |
| Dimensions (d) | request by email |
| Dimensions (d2) | request by email |
| Dimensions (D1) | request by email |
| Dimensions (b) | request by email |
| Dimensions (k) | request by email |
| Dimensions (r min) | 2.1 mm |
| Abutment and filet dimensions (da min) | 92 mm |
| Abutment and filet dimensions (Da max) | 158 mm |
| Abutment and filet dimensions (ra max) | 2.1 mm |
| Calculation factors (e) | 0.22 mm |
| Calculation factors (Y1) | 3.04 mm |
| Calculation factors (Y2) | 4.53 mm |
| Calculation factors (Y0) | 2.97 mm |
