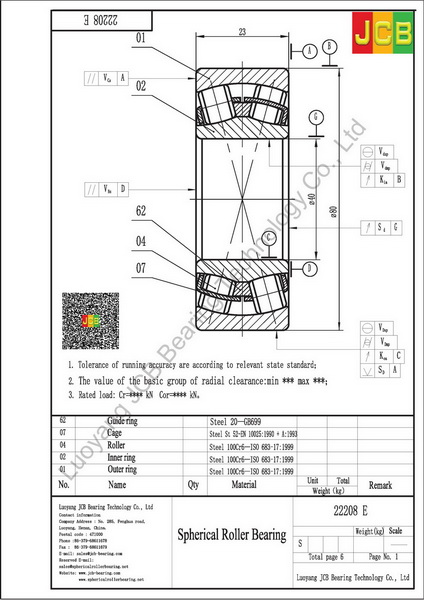

Drawing
22208 E
Specifications
| Principal dimensions (d) | 40 |
| Principal dimensions (D) | 80 |
| Principal dimensions (B) | 23 |
| Basic load ratings dynamic (C) | 96.5 |
| Basic load ratings static (C0) | 90 |
| Fatigue load limit (Pu) | 9.8 |
| Speed ratings Lubrication grease | 6000 |
| Speed ratings Lubrication oil | 7500 |
| Mass | 0.53 |
| Dimensions (d) | 40 |
| imensions (d2) | 49.6 |
| Dimensions (D1) | 69.4 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.1 |
| Abutment and filet dimensions (da min) | 47 |
| Abutment and filet dimensions (Da max) | 73 |
| Abutment and filet dimensions (ra max) | 1 |
| Calculation factors (e) | 0.28 |
| Calculation factors (Y1) | 2.4 |
| Calculation factors (Y2) | 3.6 |
| Calculation factors (Y0) | 2.5 |
