Product

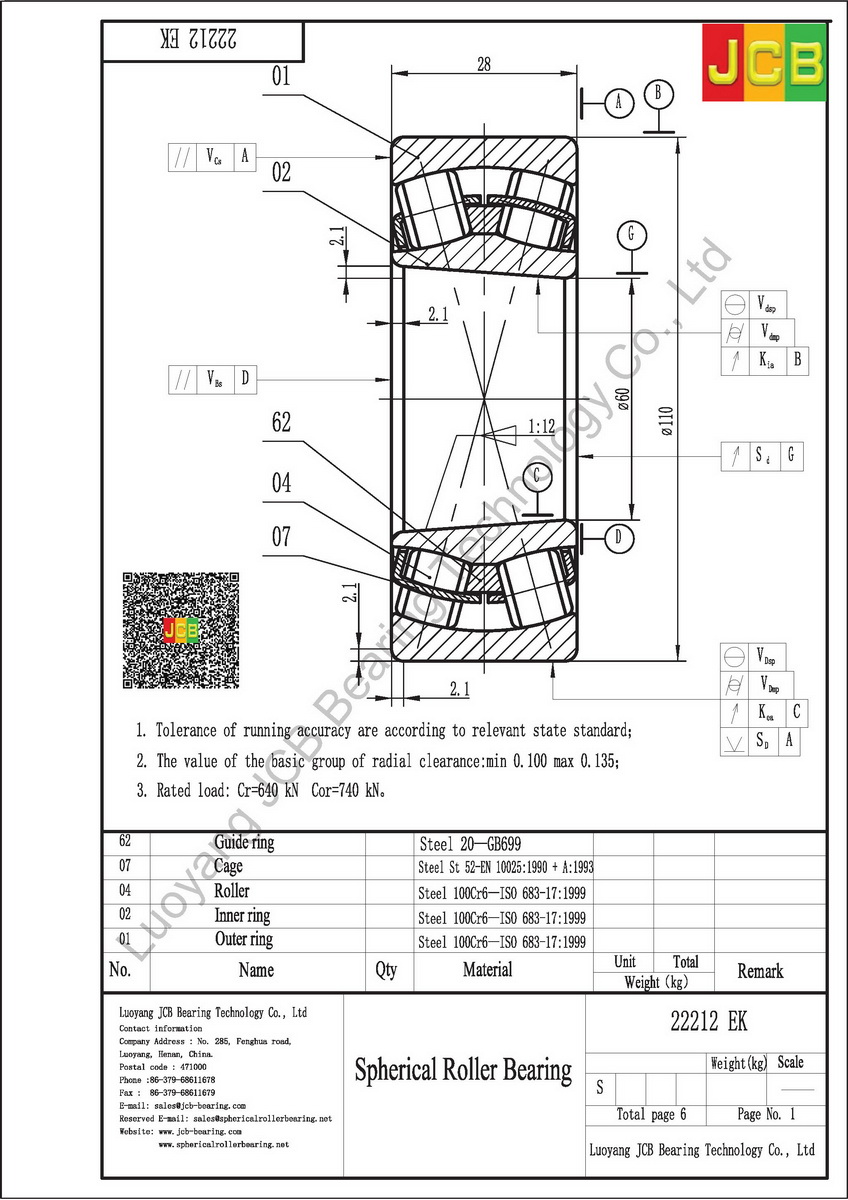

Drawing
22212 EK
Specifications
| Principal dimensions (d) | 60 |
| Principal dimensions (D) | 110 |
| Principal dimensions (B) | 28 |
| Basic load ratings dynamic (C) | 156 |
| Basic load ratings static (C0) | 166 |
| Fatigue load limit (Pu) | 18.6 |
| Speed ratings Lubrication grease | 4000 |
| Speed ratings Lubrication oil | 5000 |
| Mass | 1.15 |
| Dimensions (d) | 60 |
| Dimensions (d2) | 72.6 |
| Dimensions (D1) | 96.3 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.5 |
| Abutment and filet dimensions (da min) | 69 |
| Abutment and filet dimensions (Da max) | 101 |
| Abutment and filet dimensions (ra max) | 1.5 |
| Calculation factors (e) | 0.24 |
| Calculation factors (Y1) | 2.8 |
| Calculation factors (Y2) | 4.2 |
| Calculation factors (Y0) | 2.8 |
