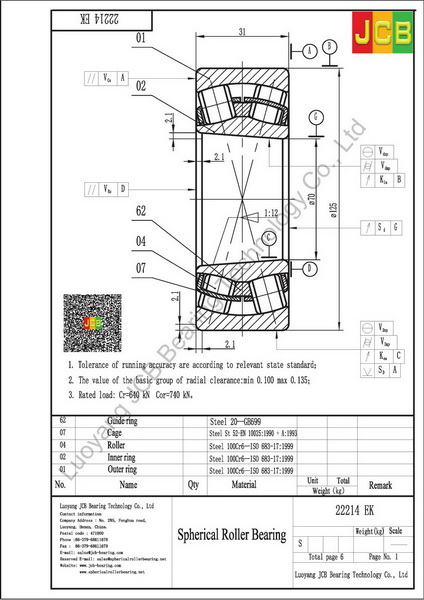

Drawing
22214 EK
Specifications
| Principal dimensions (d) | 70 |
| Principal dimensions (D) | 125 |
| Principal dimensions (B) | 31 |
| Basic load ratings dynamic (C) | 208 |
| Basic load ratings static (C0) | 228 |
| Fatigue load limit (Pu) | 25.5 |
| Speed ratings Lubrication grease | 3600 |
| Speed ratings Lubrication oil | 4500 |
| Mass | 1.55 |
| Dimensions (d) | 70 |
| Dimensions (d2) | 83 |
| Dimensions (D1) | 111 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.5 |
| Abutment and filet dimensions (da min) | 79 |
| Abutment and filet dimensions (Da max) | 116 |
| Abutment and filet dimensions (ra max) | 1.5 |
| Calculation factors (e) | 0.22 |
| Calculation factors (Y1) | 3 |
| Calculation factors (Y2) | 4.6 |
| Calculation factors (Y0) | 2.8 |
