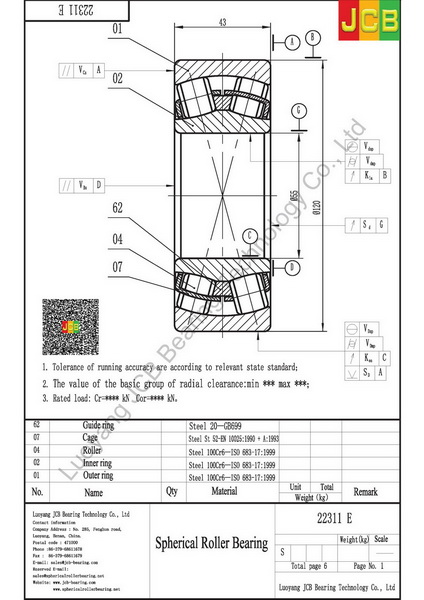

Drawing
22311 E
Specifications
| Principal dimensions (d) | 55 |
| Principal dimensions (D) | 120 |
| Principal dimensions (B) | 43 |
| Basic load ratings dynamic (C) | 270 |
| Basic load ratings static (C0) | 280 |
| Fatigue load limit (Pu) | 30 |
| Speed ratings Lubrication grease | 3200 |
| Speed ratings Lubrication oil | 4000 |
| Mass | 2.45 |
| Dimensions (d) | 55 |
| Dimensions (d2) | 70.1 |
| Dimensions (D1) | 102 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 66 |
| Abutment and filet dimensions (Da max) | 109 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
