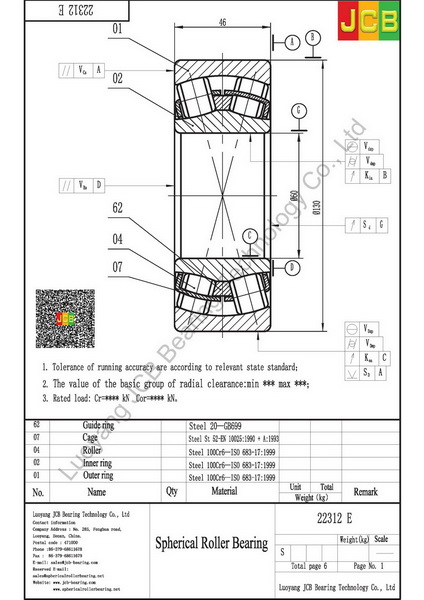

Drawing
22312 E
Specifications
| Principal dimensions (d) | 60 |
| Principal dimensions (D) | 130 |
| Principal dimensions (B) | 46 |
| Basic load ratings dynamic (C) | 310 |
| Basic load ratings static (C0) | 335 |
| Fatigue load limit (Pu) | 36.5 |
| Speed ratings Lubrication grease | 2800 |
| Speed ratings Lubrication oil | 3600 |
| Mass | 3.1 |
| Dimensions (d) | 60 |
| Dimensions (d2) | 77.9 |
| Dimensions (D1) | 110 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 72 |
| Abutment and filet dimensions (Da max) | 118 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.35 |
| Calculation factors (Y1) | 1.9 |
| Calculation factors (Y2) | 2.9 |
| Calculation factors (Y0) | 1.8 |
