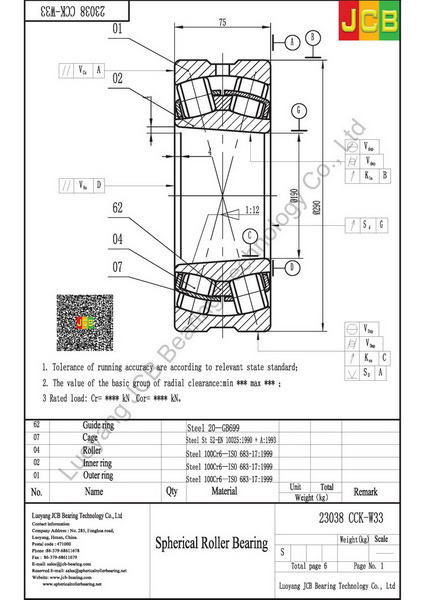

Drawing
23038 CCK/W33
Specifications
| Principal dimensions (d) | 190 |
| Principal dimensions (D) | 290 |
| Principal dimensions (B) | 75 |
| Basic load ratings dynamic (C) | 965 |
| Basic load ratings static (C0) | 1340 |
| Fatigue load limit (Pu) | 122 |
| Speed ratings Lubrication grease | 1300 |
| Speed ratings Lubrication oil | 1700 |
| Mass | 18 |
| Dimensions (d) | 190 |
| Dimensions (d2) | 216 |
| Dimensions (D1) | 261 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 201 |
| Abutment and filet dimensions (Da max) | 279 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.23 |
| Calculation factors (Y1) | 2.9 |
| Calculation factors (Y2) | 4.4 |
| Calculation factors (Y0) | 2.8 |
