Product

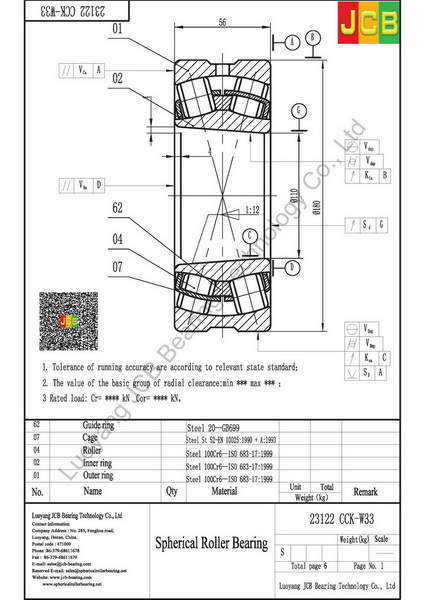

Drawing
23122 CCK/W33
Specifications
| Principal dimensions (d) | 110 |
| Principal dimensions (D) | 180 |
| Principal dimensions (B) | 56 |
| Basic load ratings dynamic (C) | 430 |
| Basic load ratings static (C0) | 585 |
| Fatigue load limit (Pu) | 61 |
| Speed ratings Lubrication grease | 1900 |
| Speed ratings Lubrication oil | 2600 |
| Mass | 5.75 |
| Dimensions (d) | 110 |
| Dimensions (d2) | 126 |
| Dimensions (D1) | 157 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2 |
| Abutment and filet dimensions (da min) | 121 |
| Abutment and filet dimensions (Da max) | 169 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.3 |
| Calculation factors (Y1) | 2.3 |
| Calculation factors (Y2) | 3.4 |
| Calculation factors (Y0) | 2.2 |
