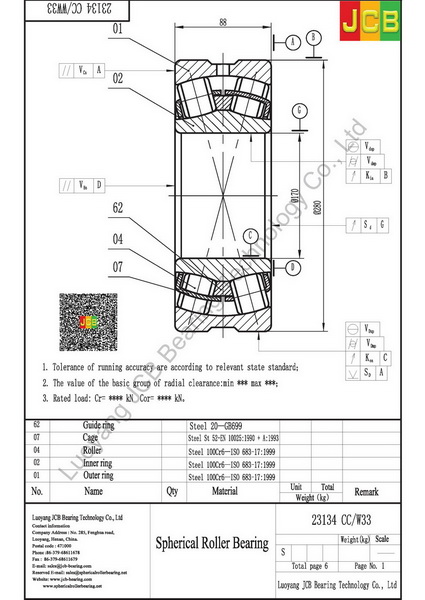

Drawing
23134 CCK/W33
Specifications
| Principal dimensions (d) | 170 |
| Principal dimensions (D) | 280 |
| Principal dimensions (B) | 88 |
| Basic load ratings dynamic (C) | 1040 |
| Basic load ratings static (C0) | 1500 |
| Fatigue load limit (Pu) | 137 |
| Speed ratings Lubrication grease | 1000 |
| Speed ratings Lubrication oil | 1400 |
| Mass | 17.5 |
| Dimensions (d) | 170 |
| Dimensions (d2) | 188 |
| Dimensions (D1) | 226 |
| Dimensions (b) | 8.3 |
| Dimensions (k) | 4.5 |
| Dimensions (r mim) | 2.1 |
| Abutment and filet dimensions (da min) | 181 |
| Abutment and filet dimensions (Da max) | 249 |
| Abutment and filet dimensions (ra max) | 2 |
| Calculation factors (e) | 0.33 |
| Calculation factors (Y1) | 2 |
| Calculation factors (Y2) | 3 |
| Calculation factors (Y0) | 2 |
