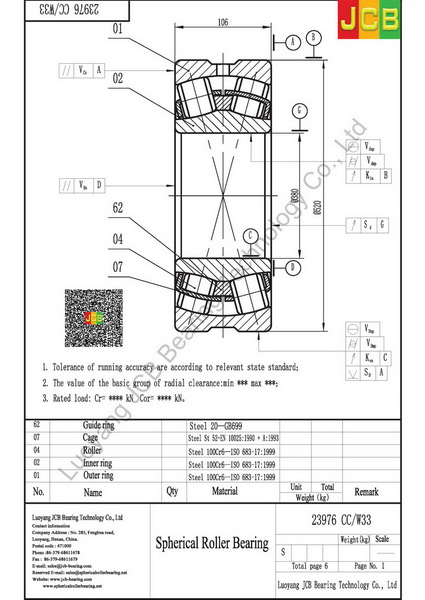

Drawing
23976 CC/W33
Specifications
| Principal dimensions (d) | 380 |
| Principal dimensions (D) | 520 |
| Principal dimensions (B) | 106 |
| Basic load ratings dynamic (C) | 1960 |
| Basic load ratings static (C0) | 3800 |
| Fatigue load limit (Pu) | 285 |
| Speed ratings Lubrication grease | 800 |
| Speed ratings Lubrication oil | 1000 |
| Mass | 69 |
| Dimensions (d) | 380 |
| Dimensions (d2) | 420 |
| Dimensions (D1) | 481 |
| Dimensions (b) | 13.9 |
| Dimensions (k) | 7.5 |
| Dimensions (r mim) | 4 |
| Abutment and filet dimensions (da min) | 395 |
| Abutment and filet dimensions (Da max) | 505 |
| Abutment and filet dimensions (ra max) | 3 |
| Calculation factors (e) | 0.17 |
| Calculation factors (Y1) | 4 |
| Calculation factors (Y2) | 5.9 |
| Calculation factors (Y0) | 4 |
