Product

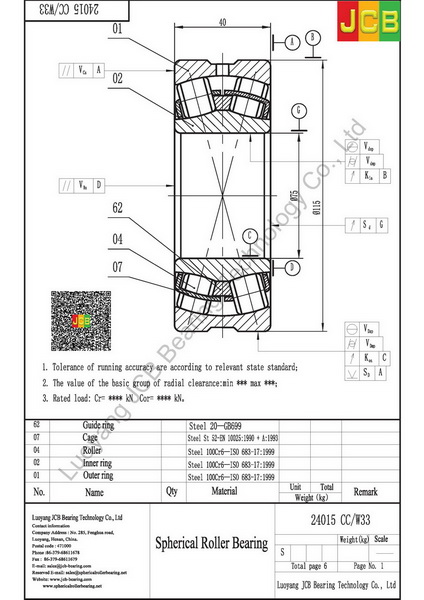

Drawing
24015 CC/W33
Specifications
| Principal dimensions (d) | 75 |
| Principal dimensions (D) | 115 |
| Principal dimensions (B) | 40 |
| Basic load ratings dynamic (C) | 152 |
| Basic load ratings static (C0) | 232 |
| Fatigue load limit (Pu) | 28.5 |
| Speed ratings Lubrication grease | 2600 |
| Speed ratings Lubrication oil | 3400 |
| Mass | 1.55 |
| Dimensions (d) | 75 |
| Dimensions (d2) | 84.1 |
| Dimensions (D1) | 100 |
| Dimensions (b) | 5.5 |
| Dimensions (k) | 3 |
| Dimensions (r mim) | 1.1 |
| Abutment and filet dimensions (da min) | 81 |
| Abutment and filet dimensions (Da max) | 109 |
| Abutment and filet dimensions (ra max) | 1 |
| Calculation factors (e) | 0.28 |
| Calculation factors (Y1) | 2.4 |
| Calculation factors (Y2) | 3.6 |
| Calculation factors (Y0) | 2.5 |
